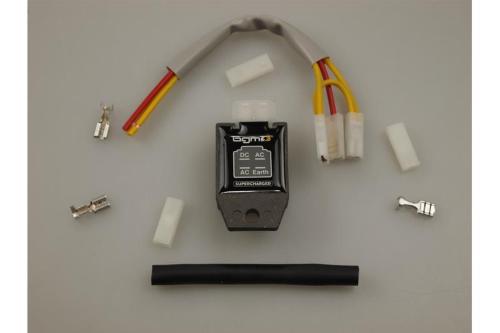

BGM AC / DC rectifier to charge 12V batteries for Vespa

Description

BGM AC/DC rectifier to charge 12V batteries for Vespa compact voltage regulator for electronic ignition.Regulator provides AC and DC. It is the ideal replacement for all Ducati 3-pin and 5-pin controllers, as well as for Vespatronic Variotronic controllers and Vespatronic. AC-CA (alternating current): Input (IN) connected to the stator and output (OUT) connected to the wiring harness and regulated power supply. Sense function: the AC input and output are bridged via the connector supplied with the controller. On the sense line (bridge), the output voltage is compared with a constant reference voltage ensuring even load fluctuations. DC (direct current) Output for battery charging. Ignitions with a high output power will also directly supply various equipment such as GPS, water pump, tachometer and all sorts of other gadgets. Earth (ground): can be retrieved from the former governor. If the connection is not available, it must be created by connecting the output to the scooter frame. The metal part must be chosen as a bare ground and thus free of any paint or insulation. Ideally the body of the governor should be connected to earth. connection to the existing beam is easy. For systems that run entirely on alternating current (AC), simply connect the AC output beam providing the equipment. For systems running on AC and DC, simply connect the corresponding AC output and DC beam.
