VMC KAST GR-V 132cc cast iron reed valve cylinder, 51mm stroke, side spark plug

Price:	€310,00 All prices include VAT
Item code:	120151
cod. produttore:	3893
Availability:	Available to be ordered
Quantity:	VMC KAST GR-V 132cc cast iron reed valve cylinder, 51mm stroke, side spark plug How many PZ do you want to add?

Services

Print Tell me when price will be reduced Tell me when the product will become available Share Ask for information

Users feedback

Description

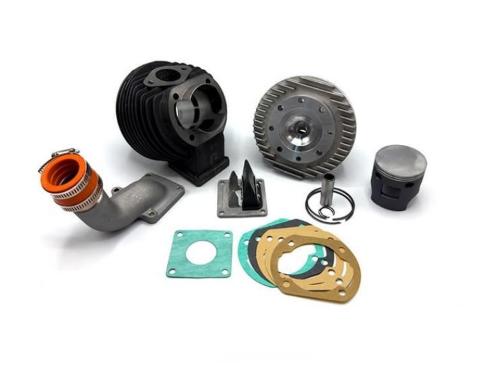

Conversion kit for Vespa small frame engines. Cast iron cylinder with cylinder intake. Bore: diameter 57.5 mm Stroke: 51 mm Displacement 132.37 cc Primary, secondary and front exhaust timing approx. 125° Exhaust timing approx. 175° Two-ring aluminium alloy piston Cast aluminium head S10 chrome-plated cast iron piston rings Steel piston pin Recommended squish: 1.1 mm ±0.1 mm Cylinder studs: M7x150 Cylinder stud nut tightening torque: 14 Nm Head bolts: TCEI M6x30 (12 Nm) Paper cylinder gaskets (0.2÷0.3÷0.4÷0.5 mm) Aluminium carburettor manifold, diameter 28/30 mm with elastic connection Double-crested 8-petal aluminium reed valve with vulcanised coating, carbon reeds High-quality silicone carburettor sleeve complete with stainless steel clamps Stainless steel intake closure flange on the crankcase
